Food Processing Machinery

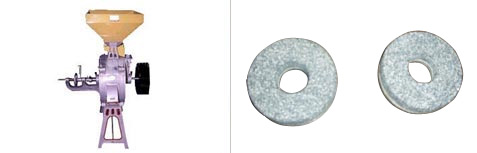

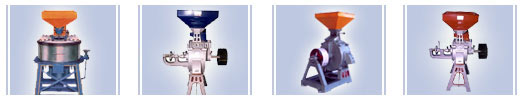

Food processing machinery and food processing equipment includes machinery used for a wide range of food processing processes, such as grinding of cereals, spices and other food particles. We are the manufacturers of food processing machinery - Grinding Mill, in which grinding media is Flour Mill Emery Stone which is exclusively manufactured by Natural materials with oxychloride process. The stones are hard and have good wearing qualities, which means less wear and thus a long life. Our Flour mill machine is good for health and easier in grinding. With this particular grinding media our food machinery is better than the one made of iron grinders. Sharad Enterprises flour plant is more than just some machines. To us flour is not only a question of production, but also a question of nutrition. Flour ground on stone mills contains all the natural vitamins, minerals and ballast substances and may without any further processing be used for baking.

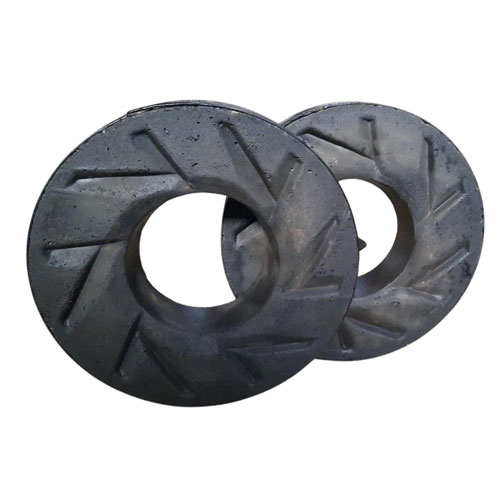

Sharad Enterprises’s Specific Grinding Mill stones is result of wide experience, R & D and innovations. These Stones are basically used for grinding of Sesame ( For Tahini Paste ), Coffee, Spices, Pulses, Chemicals, Salt, Seeds, Wet Grinding, Chatni, Paste and all kinds of grains.

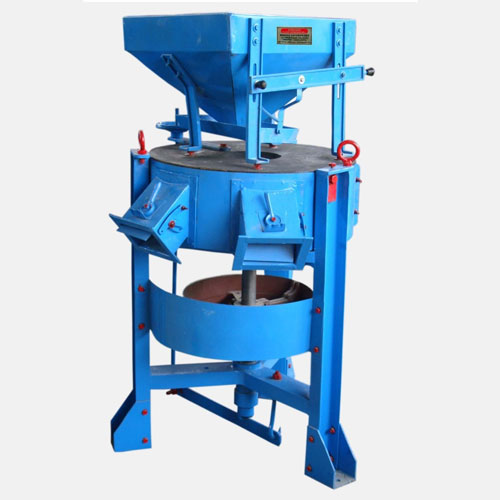

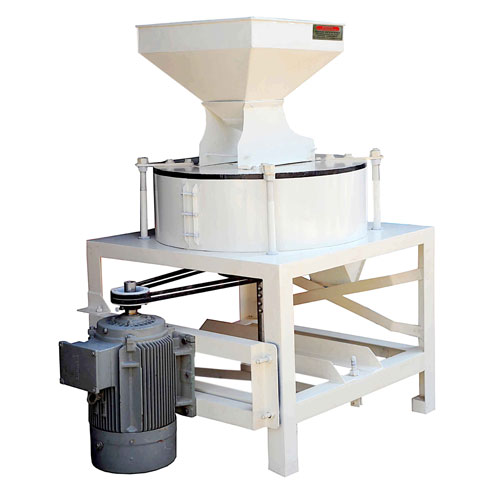

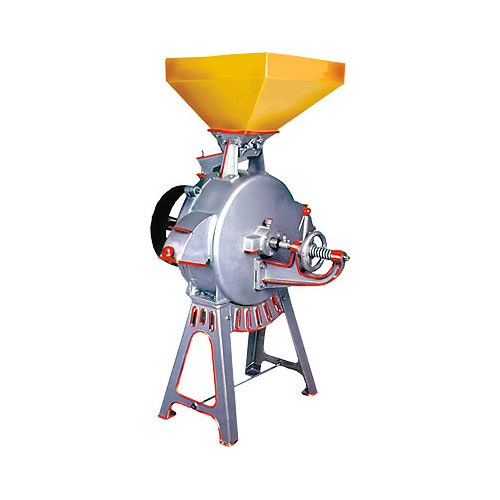

Sharad Enterprises Horizontal Grinding Mills are for cost effective grinding of wheat, corn, spices, teff, sorghum, millet. We are engaged in the manufacture of a variety of technically advanced Horizontal Flour mill machines. They are capable of producing Flour with high nutrition value with their unique feature of cool grinding. This machine is multipurpose use. The machine is very simple in operation and easy in maintenance.

Technical Specifications for “POWER - GRINDER” Horizontal Flour Grinding Mill
	Diameter Size of Millstone in MM & in Inches
	500MM - 20"	600MM - 24"	700MM - 27"	800MM - 30"	950MM – 38”
Pulley Size	375MM	475MM	550MM	700MM	800MM
R. P. M.	575	480	420	350	300
H. P. Required	10HP	10HP	15HP	20HP	25HP
Output Per Hour (Coarse/Fine Grinding)	150/400 Kg.	175/500 Kg.	225/600 Kg.	300/850 Kg.	350/1000 Kg.
* Mills are packed in wooden boxes in CKD.  Specifications may change without prior notice.

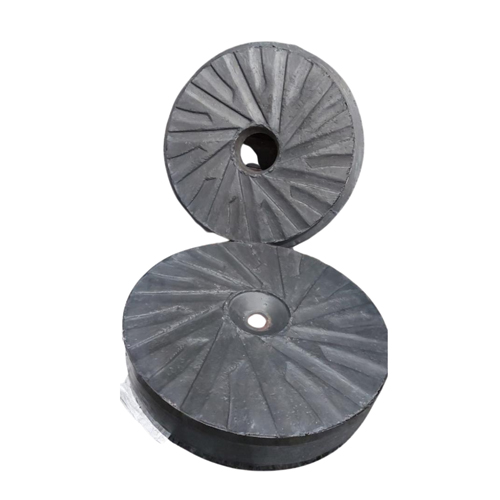

Horizontal Mill Stone is exclusively manufactured by Natural materials with oxychloride process. The Heavy Duty Stones bolted on is bolted on the casting and the runner stone is fitted on the shaft. Manufactured by high quality syncroshaped Abrasive grains having hardness about 8 on Moh's scale with both black bonding & white bonding.

• Result of more than 25 years of production experience and continuous product improvement.
• Made out of strong Cast Iron body for long life.
• Superior in Quality & Performance.
• Precision Engineered to ensure durability, easy operation and easy maintenance.
• Especially well suited for spices and can be applied to numerous other products.
• Offer low investment in fine grinding.
• Capability to adjust the gap between the millstones to get the desired level of fineness of flour.
• Runs at low operational cost.
• Low heat transfer to the grounded product.
• Easily available spare parts
• Available in sizes 300mm, 400mm, 500mm, 600mm.

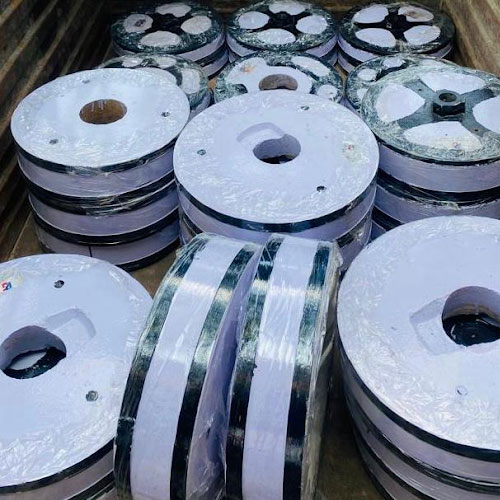

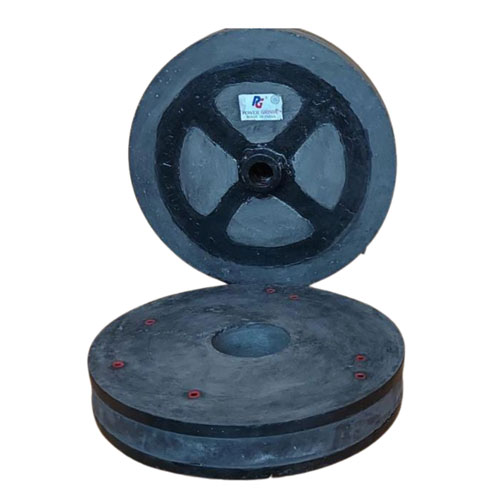

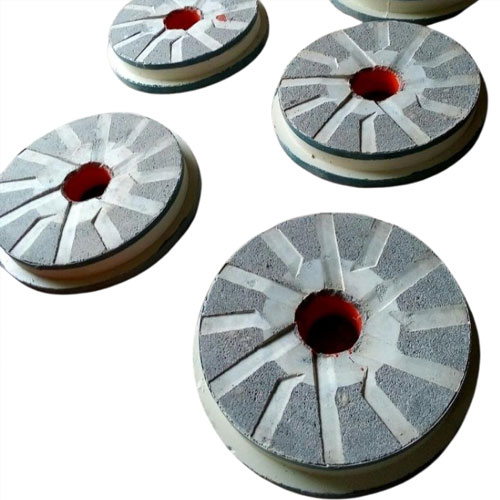

Vertical Mill Stone is exclusively manufactured by Natural materials with oxychloride process. Strict setting time, Tensile, Transverse and Compressive strength, Steam and Moisture resistant test are done at every stage of its manufacturing to ensure consistent quality. Available in all sizes in both White Bond and Black Bond.

We offer our clients an entire range of Rice Hullar that is used to automate the process of removing the chaff and the outer husks of rice grain. Our rice hullars are precision engineered, durable, efficient and are available in different sizes and specifications. These machines are exquisitely designed and are equipped with devices such as Galvanized Iron Hoper, Highly Tempered Screens and blade, Cylinder Shell and Ball bearings for the smoothness of the machine.

This mill is best suited for grinding small quantities of all kinds of spices, coffee and pepper with economical power consumption. For fineness or coarseness adjust the gap between plates by regulating wheel and control the input quantity. As it has bush bearing and V Belt drive it is smooth and noiseless.

Specification of 11 A Grinding Mill :

Coffee Mini Grinder
MODEL	SPEED RPM			B.H.P
11 A	600			2

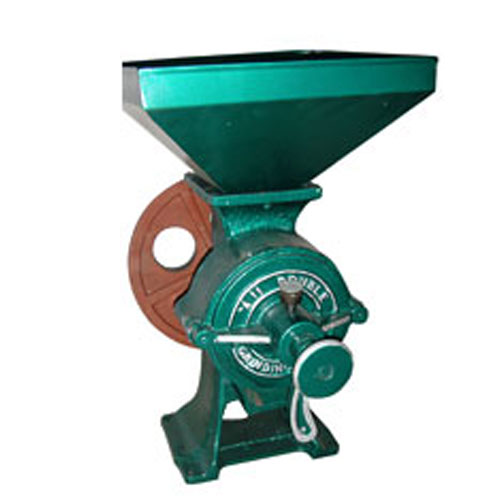

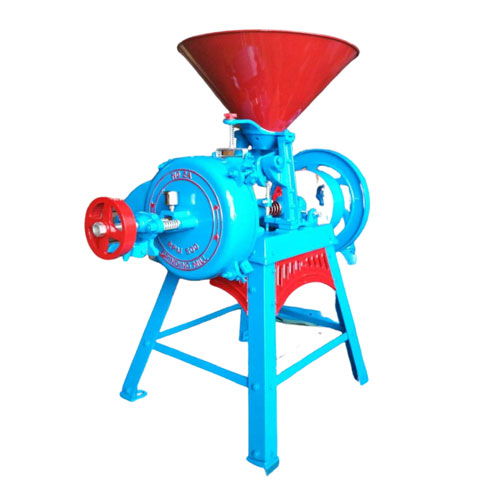

The 1A, 2A Corn Grinding Mills, Maize Mills provided by us is offers high speed and continuous grinding. These mills are easy to install, easy to operate, highly efficient and durable.

Specification of 1A, 2A Grinding Mill :

1 A , 2 A Corn Mill
MODEL	SPEED RPM			B.H.P
1 A	600			4-6
2 A	500			6-8

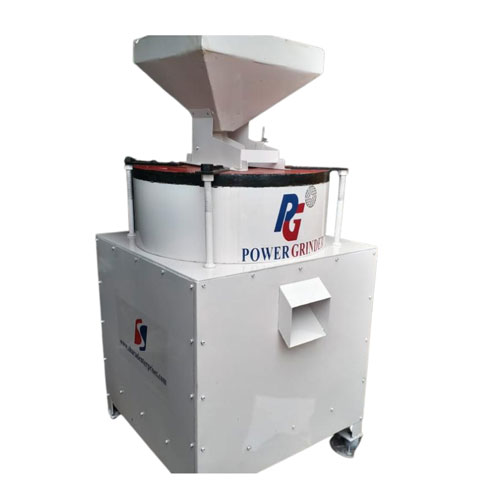

Sharad Enterprises spice grinding mill is specially designed for fine grinding of various spices. A perfect design of pneumatic conveying system ensures a dust free and cool operation which is very important for spice, thereby retaining vital properties like color, taste, aroma, flavor, oil contents etc.

Technical & Specifications for Spice Grinding Mill ( Pulvirisor )
DESCRIPTION	SPECIFICATION
EQUIPMENT	SPICE MILL
MODEL	POWER GRINDER – 10
H.P. FOR MACHINE	10 H. P.
BEARING	SELF ALIGNING
TYPE / NO. OF HAMMERS	BAR – TYPE / 24 NUMBERS
LINERS	TOP & SIDE / SERRATED
TYPE OF SCREEN	PERFORATED
TYPE OF DRIVE	V – BELT
MODE OF FEEDING	MANUAL IN 1ST SPICE MILL & FROM SCREW CONVEYOR IN 2ND SPICE MILL
MODE OF COLLECTION	INTO SCREW CONVEYOR FROM 1ST STAGE  & INTO COLLECTION TROLLEY FROM 2ND STAGE.
MATERIAL OF CONSTRUCTION	COMPLETE CONSTRUCTION IN M.S./C.I. AS  PER OUR STANDARD SUPPLY.

Characteristics
Hammer mill is a economical unit designed for general ail-round work for time saving operation. Most Often, the only changes necessary are of Screens, hammers and liners.

Feed Material passes through a wide feed hopper into the grinding chamber. The swinging hammers, ha the rotating hammer rotor, crush materials at the stationery liners before driving them trough a screen and type of hammers used. The method of operation is impact grinding.

Traditional disintegrators are technologically replaced by these modern machine, having total flexibility. Combination of different hammer styles, liner plates, sieve inserts and wear resistance technology offer almost unlimited possibilities crushing lumpy, bulky, irregularly shaped, hard & fibrous materials, into coarse to medium tine powder.

Hammer mill is subjected to rigid lint inspection and actual grinding tests at our experimental station before it is delivered to the stores for dispatch. Grinding tests with your materials can also be carried out without obligation for testing the suitability of the mill for your satisfaction.

Application:

PERMISSIBLE FEED SIZE	UPTO 100MM
FINENESS ACHIEVABLE	UPTO 80 MESH OR 180 MICRONS
PERMISSIBLE HARDNESS	UPTO 3MOH'S SCALE
PERMISSIBLE BRITTLENESS	MEDIUM TO HIGH
PERMISSIBLE MOISTURE	UPTO 3%
